(1) fume absorption rate should be greater than 95%, using the same use of diversion protection device.

　　(2) 圍護結構應配有鉸接式檢查門,以便于衛生清潔及觀察。

　　(2) enclosure structure shall be equipped with hinged inspection door for sanitary cleaning and observation.

　　(3)設備全部由不銹鋼制成,所有聯結處為防水、防蒸汽、防油煙。

　　(3) all the equipment is made of stainless steel and all joints are waterproof, steam proof and smoke proof.

　　(4)風罩嵌入吊頂內,兩者之間設有不銹鋼裝飾板,用厚度1.2㎜的不銹鋼板制造,易拆卸,嵌入深度≥100㎜。

　　(4) hood embedded in the ceiling, stainless steel decorative plate is arranged between the two, manufacture, easy disassembly of stainless steel plate thickness of 1.2 mm, 100 mm above the embedded depth.

　　(5)全部罩體用厚度大于1.0㎜的不銹鋼板制造.

　　(5) covering the whole body with a stainless steel plate thickness greater than 1 mm.

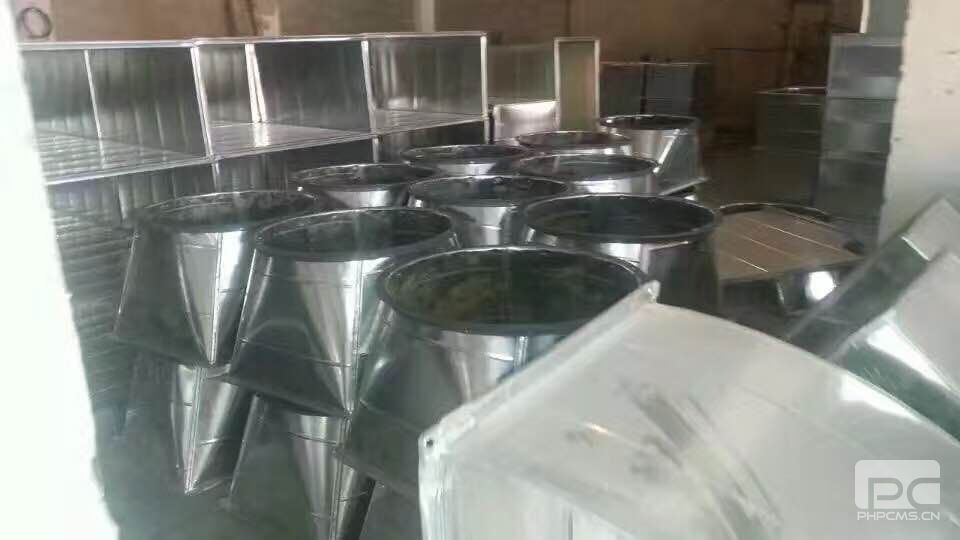

　　(6)通風管用1.0鍍鋅板制成，設有不銹鋼鐵風量調節閥。

　　(6) the ventilation pipe is made of 1 galvanized steel sheets and is equipped with stainless steel air flow regulating valve.

　　(7)照明設備是防濺,防水、內凹型的,分布于每1000㎜距離，并應將所有電線套于導管中，用接駁箱連接。照度裝置大于等于600lux,采用節能芝光管燈,統一的電力接口。

　　(7) the lighting equipment is splash proof, waterproof, concave type, distribution in each 1000 mm distance, and should be set to all wire conduit, connected with the connection box. The illumination device is greater than or equal to 600lux, the use of energy-saving Chicago neon lights, power unified interface.

　　(8) 風罩豎板帶有一體環繞的自排裝置,排放槽易于清洗油煙、蒸汽,排放管為不銹鋼制,并聯至風罩的全自動自清潔裝置。

　　(8) since the exhaust hood riser with one surround the discharge groove and easy cleaning fume, steam discharge pipe, stainless steel, parallel to the wind hood automatic self cleaning device.
